Melamine, a nitrogen-rich organic compound, is a key ingredient in the production of durable, hard, and chemical-resistant resins used across various industries. The production of melamine centers on the chemical conversion of urea, and this process is carried out using two primary methods.
The high-pressure process, an older technology, involves liquefying urea and introducing it into a high-pressure reactor. Operating at around 100 atm and temperatures between 350°C and 450°C, the urea decomposes into melamine and ammonia. The resulting melamine then undergoes several separation and purification steps, including quenching, crystallization, and drying. However, this process is less energy-efficient and generates more by-products compared to the low-pressure process.
The low-pressure process, the more modern approach, employs a gas-phase reaction. Urea is vaporized and fed into a catalytic reactor at lower pressures, typically between 5 and 10 atm, and at temperatures ranging from 350°C to 400°C. A catalyst, commonly silica-based, facilitates the conversion of urea into melamine. The melamine product is then purified using techniques like gas quenching and washing. This low-pressure method is favored for its higher energy efficiency, reduced by-product formation, and suitability for continuous operation.
Regardless of the specific process, several factors are critical to both the efficiency and the quality of the melamine production. High-purity urea is essential to minimize by-product formation and ensure the production of high-quality melamine. Precise control over reaction conditions, including temperature, pressure, and residence time within the reactor, is crucial for maximizing melamine yield and minimizing side reactions. In the low-pressure process, catalyst activity and lifetime significantly impact process efficiency and operating costs. Efficient handling and recycling of ammonia and other gases generated during the reaction are necessary for both economic and environmental reasons. Finally, the purification steps are critical for removing impurities and achieving the desired melamine purity.

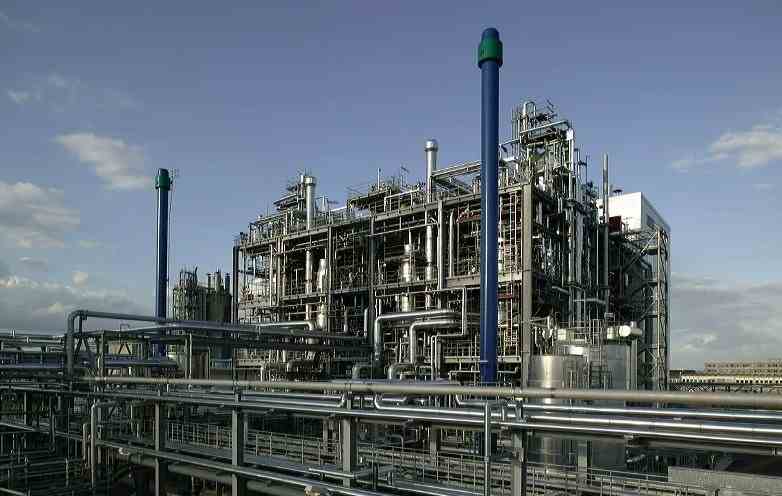

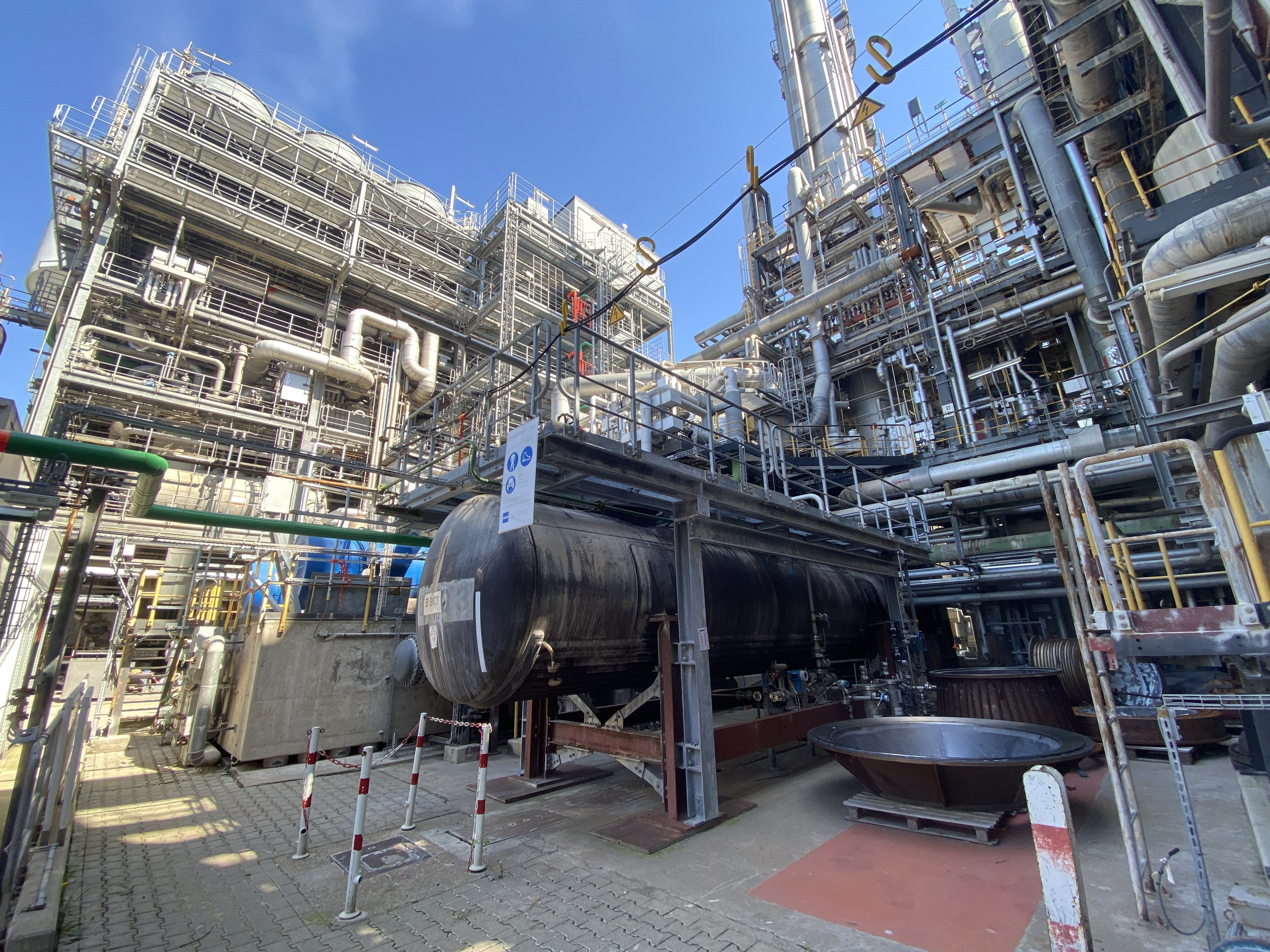

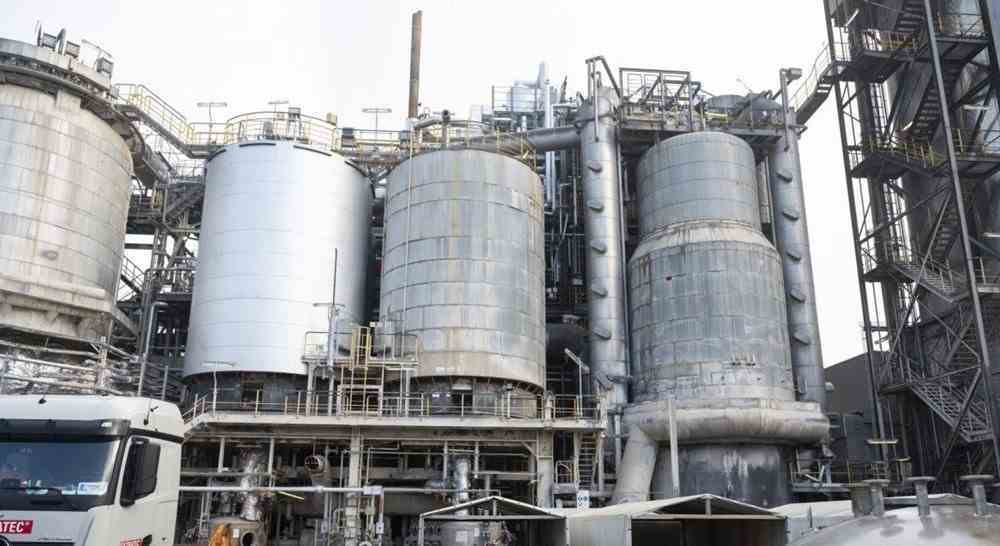

A melamine plant with a production capacity of 50,000+ tons per year (TPY) is a large-scale facility designed for significant melamine production. Such a plant typically incorporates advanced technologies to maximize efficiency, minimize waste, and meet stringent product quality standards. For example, a modern 50,000 TPY melamine plant is likely to utilize the low-pressure process with an optimized catalyst system. This enables high conversion rates, reduced energy consumption, and lower emissions. The plant also includes sophisticated process control systems to maintain precise reaction conditions, ensuring consistent product quality.
In addition to the core reaction section, a 50,000 TPY plant incorporates extensive purification and separation equipment. This equipment may include gas quenching systems for rapidly cooling the reactor effluent, scrubbing and absorption units for recovering ammonia and other valuable by-products, crystallization and filtration systems for separating melamine from the reaction mixture, and drying units, such as fluidized bed dryers, to remove residual moisture from the melamine crystals. Finally, bagging or packaging systems prepare the final product for storage and shipping. These plants also have comprehensive utilities and support systems, including urea handling and storage facilities, steam generation and cooling water systems, wastewater treatment plants, and emissions control systems. The design and operation of a 50,000 TPY melamine plant represent a significant engineering undertaking, requiring expertise in chemical processing, equipment design, and environmental management.
